M588F

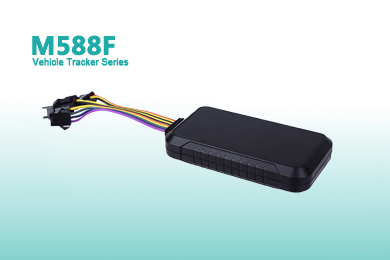

M588F CAT M1 4G Vehicle GPS Tracker

M588F is a 4G vehicle GPS tracker with stable quality and precise positioning. It supports 4G, CAT M1, 3G and 2G network. In addition to real-time positioning, it has remote disable engine and voice monitoring feature. When there is an emergency, it is ok to press SOS button for help.

Download M508N User Manual

FEATURES

ACCURATE GPS AGPS LBS POSITIONING

Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.

REMOTE CUT OFF CAR ENGINE

Shut off car engine remotely through web platform, mobile application or SMS.

DETECT ACC STATUS

Whenever the car ignition turns on, you will receive a notification.

SOS EMERGENCY CALL

Press SOS button to make a call for help if there is an emergency situation.

SMS CONFIGURATION

Configure the device by SMS even you are staying thousands of miles away.

VOICE MONITORING

You could listen what is happening in the car without generating notification to anyone in the car.

MULTIPLE ALERTS

Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.

TRACK LOCATION BY WEB, APP, SMS

Three methods help you to know the car location whenever and wherever.

APPLICATIONS

SPECIFICATIONS

Items  Parameters
4G Module Quectel BG96
4G Frequency 1900MHZ
LBS Positioning Accuracy 100-500m
4G Antenna Built-in
GPS Chipset U-blox 7020
GPS Sensitivity -159 dBm
GPS Frequency L1, 1575.42 MHZ
Channels 50 channels examine track
GPS Positioning Accuracy 5-10m, 2D RMS
GPS Antenna Built-in
Speed Accuracy 0.1m/s
Time Accuracy Synchronize with GPS
GPS Data WGS-84
Hot Start <1s
Warm Start <38s
Max Altitude 18000m
Max Speed 515m/s
Gravity Acceleration <4g
Working Voltage 8VDC~46VDC
Working Current 50mA~160mA
Operating Temperature -20℃—70℃
Humidity 5%—95%
Size 96mm × 52mm × 19mm
Simcard Normal simcard
Battery Rechargeable lithium polymer battery 260mAh
Internal battery Standby >2h

ACCESSORIES

Standard Accessories    I/O cable, Power cable, Relay, Microphone, SOS button

Optional Accessories    None

CERTIFICATES

CE, RoHS, FCC
