m528 vehicle tracker

M528S

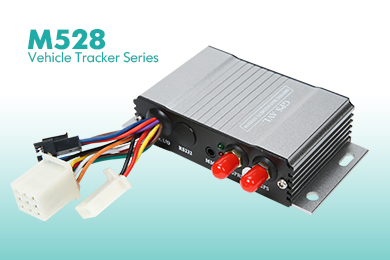

M528S High-end Car GPS Tracker

M528S is a high-end car GPS tracker with excellent performance. Except for real time tracking, remote shut off car engine, voice monitoring and ACC detection, this GPS tracking device supports door/air-conditioner status detection and fuel monitoring to avoid stealing fuel.

Download M528 User Manual

FEATURES

ACCURATE GPS AGPS LBS POSITIONING

Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.

DOOR AND AIR-CONDITIONER STATUS DETECTION

Instant know the status of door and air-conditioner, and get a notification when they turn ON.

TWO-WAY COMMUNICATION

Connected with microphone and speaker, you can call the device for two-way communication.

REMOTE CUT OFF CAR ENGINE

Shut off car engine remotely through web platform, mobile application or SMS.

DETECT ACC STATUS

Whenever the car ignition turns on, you will receive a notification.

TEMPERATURE MONITORING

Instant know the temperature, which is the best feature for food transportation.

FUEL LEVEL MONITORING

Instant know the fuel consumption, free you from thinking of the stealing affairs of fuel in your fleets.

MULTIPLE ALERTS

Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.

APPLICATIONS

SPECIFICATIONS

Items  Parameters
GSM Module Quectel M50
GSM Frequency 850/900/1800/1900 MHZ
LBS Positioning Accuracy 100-500m
GSM Antenna External
GPS Chipset U-blox 7020
GPS Sensitivity -159 dBm
GPS Frequency L1, 1575.42 MHZ
Channels 20 channels examine track
GPS Positioning Accuracy 5-10m, 2D RMS
GPS Antenna External
Speed Accuracy 0.1m/s
Time Accuracy Synchronize with GPS
GPS Data WGS-84
Hot Start <1s
Warm Start <38s
Max Altitude 18000m
Max Speed 515m/s
Gravity Acceleration <4g
Working Voltage 8VDC~50VDC
Working Current 50Ma~160Ma
Operating Temperature -20℃—70℃
Humidity 5%—95%
Size 96mm × 55mm × 26mm
Simcard Normal simcard
Battery Rechargeable lithium polymer battery 380mAh
Internal battery Standby >4h
Input 3pcs (including ACC detection)
Output 2pcs
A/D input 1pc

ACCESSORIES

Standard Accessories    I/O cable, power cable, relay, SOS button, Microphone, GPS antenna, GSM antenna

Optional Accessories    fuel sensor, temperature sensor, iButton

CERTIFICATES

CE, TELEC, RoHS
