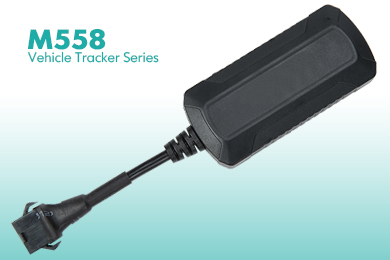

M558S
the Basic Car Motorbike GPS Tracker
M558 GPS tracker is specially designed for electric cars and motorbikes. It is as small as an USB drive and weighs only 50g. This GPS device updates location at intervals, and to save battery, it can be set into sleep mode.
FEATURES
ACCURATE GPS AGPS LBS POSITIONING
Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.
RESEND DATA FROM SIGNAL DEAD ZONE
In GSM signal blind areas, the device will store all the GPS data, and resend them immediately to the server in the case of signal recovery.
REMOTE CUT OFF CAR ENGINE
Shut off car engine remotely through web platform, mobile application or SMS.
DETECT ACC STATUS
Whenever the car ignition turns on, you will receive a notification.
HISTORY PLAYBACK
Check the history location to know where the electric car/motorbike went.
COMPACT SIZE
Be suitable to install it in electric cars and motorbikes, easy to hide.
MULTIPLE ALERTS
Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.
SMS CONFIGURATION
Configure the device by SMS even you are staying thousands of miles away.
APPLICATIONS
SPECIFICATIONS
| Items | Parameters |
| GSM Module | Quectel M26 |
| GSM Frequency | 850/900/1800/1900 MHZ |
| LBS Positioning Accuracy | 100-500m |
| GSM Antenna | Built-in |
| GPS Chipset | U-blox 7020 |
| GPS Sensitivity | -159 dBm |
| GPS Frequency | L1, 1575.42 MHZ |
| Channels | 20 channels examine track |
| GPS Positioning Accuracy | 5-10m, 2D RMS |
| GPS Antenna | Built-in |
| Speed Accuracy | 0.1m/s |
| Time Accuracy | Synchronize with GPS |
| GPS Data | WGS-84 |
| Hot Start | <1s |
| Warm Start | <38s |
| Max Altitude | 18000m |
| Max Speed | 515m/s |
| Gravity Acceleration | <4g |
| Working Voltage | 8VDC～100VDC |
| Working Current | 50mA~160mA |
| Operating Temperature | -20℃—70℃ |
| Humidity | 5%—95% |
| Size | 55mm × 28mm × 12mm |
| Simcard | Normal simcard |
| Battery | Rechargeable lithium polymer battery 110mAh |
| Internal battery Standby | >30minutes |
ACCESSORIES
Standard Accessories Power cable
Optional Accessories None
CERTIFICATES
