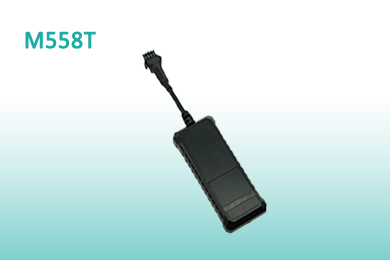

M558T
4G LTE Vehicle GPS Tracker
M558T is a 4G LTE vehicle GPS tracker with stable quality and precise positioning. It supports 4Gand 2G network. Support remote engine control and harsh braking/acceleration/turn alarm, support vibration alarm, rollover alarm, collision alarm. With small size and low power consumption and supporting 0~90V voltage, it can be used on motorcycle/truck/bus/e-bike etc.
FEATURES
ACCURATE GPS POSITION
Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.
REMOTE CUT OFF CAR ENGINE
Shut off car engine remotely through web platform, mobile application or SMS.
DETECT ACC STATUS
Whenever the car ignition turns on, you will receive a notification.
COMPACT SIZE
Be suitable to install it in electric cars and motorbikes, easy to hide.
4G LTE NETWORK
Support 4G LTE and 2G network.
RESEND DATA FROM SIGNAL DEAD ZONE
In GSM signal blind areas, the device will store all the GPS data, and resend them immediately to the server in the case of signal recovery.
HISTORY PLAYBACK
Check the history location to know where the electric car/motorbike went.
MULTIPLE ALERTS
Instant alert for overspeed, GEO-fence, parking, external power disconnected, idle status, driver behaviors(harsh brake/accelerate/turn), crash, roll over, vibration after ignition off(anti-tamper/anti-theft/towed away).
APPLICATIONS
SPECIFICATIONS
| Work voltage | 9~90VDC |
| Work current | 30mA-55mA |
| GSM module | EC600U-EU |
| Support LTE/GSM Frequency | 4G&2G |
| Communication protocol | TCP/UDP |
| GPS module | Built-in |
| GPS sensitivity | -157dBm |
| Channels | 56 channels examine track |
| Position accuracy | 2m |
| Cold boot | 32s |
| Work temperature | -20～70℃ |
| Humidity | 5% to 95% non-condensing |
| Terminal size | 86mm*37mm*15mm |
| Gravity Acceleration | <4g |
| Operating Temperature | -20℃—65℃ |
| Humidity | 5%—95% |
| Internal Battery | 150mAh/4.2V |
| weight | 40g |
ACCESSORIES
Standard Accessories Wire Cable
Optional Accessories Relay
CERTIFICATES
