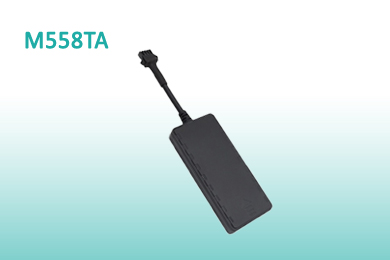

M558TA

4G LTE Vehicle GPS Tracker

M558TA is a 4G LTE vehicle GPS tracker with stable quality and precise positioning. It supports 4G, LTE and 2G network. In addition to real-time positioning, it has remote disable engine. It is small size and low power consumption, when installed it in motorcycle, you can set it to sleep mode to save battery.

FEATURES

4G LTE NETWORK

Support 4G LTE and 2G network.

COMPACT SIZE

Be suitable to install it in electric cars and motorbikes, easy to hide..

ACCURATE GPS POSITION

Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.

REMOTE CUT OFF CAR ENGINE

Shut off car engine remotely through web platform, mobile application or SMS..

DETECT ACC STATUS

Whenever the car ignition turns on, you will receive a notification.

RESEND DATA FROM SIGNAL DEAD ZONE

In GSM signal blind areas, the device will store all the GPS data, and resend them immediately to the server in the case of signal recovery.

HISTORY PLAYBACK

Check the history location to know where the electric car/motorbike went.

MULTIPLE ALERTS

Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.

APPLICATIONS

  • engineering vehicle gps tracking solution myrope
  • public bus gps tracking solution myrope
  • motorcycle gps tracker myrope
  • gps tracking taxi
  • myrope electric motorcycles gps tracker
PreviousNext
12345

SPECIFICATIONS

Items Parameters
GSM ChipsetMTK 6261D
GSM Frequency850/900/1800/1900 MHZ
LBS Positioning Accuracy100-500m
GSM AntennaBuilt-in
GPS ChipsetU-blox 7020
GPS Sensitivity-163 dBm
GPS Positioning Accuracy5-25m
GPS AntennaBuilt-in
Wifi ChipsetMT 5931
Wifi Positioning Accuracy5-25m
Wifi AntennaBuilt-in
G-SensorBOSCH BMA223
PedometerFREESCALE 9555
Screen0.96” OLED
Speed Accuracy0.1m/s
Time AccuracySynchronize with GPS
GPS DataWGS-84
Hot Start<1s
Warm Start<38s
Max Altitude18000m
Max Speed515m/s
Gravity Acceleration<4g
Operating Temperature-20℃—65℃
Humidity5%—95%
Size57mm×42mm×13mm
SimcardMicro simcard
BatteryRechargeable lithium polymer battery 350mAh
Power Supply3.7V-5V, 0.2A-0.5A
Standby>50h
Ringtone64 polyphonic
Ringtone formatMP3, MIDI, AMR, AAC, WAV
Built-in Ringtone numbersMIDI 5

ACCESSORIES

Standard Accessories   USB Charging Cable

Optional Accessories    None

CERTIFICATES

CE, RoHS, FCC
