M568L

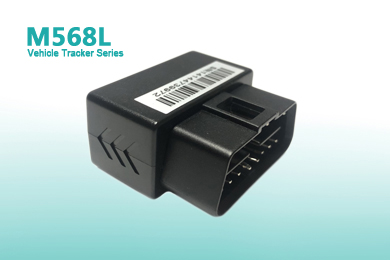

M568L OBD II GPS Tracker

M568 is an OBD II gps tracker that. It is compatible with car’s OBD II interface, plug and play.

Download M508N User Manual

FEATURES

ACCURATE GPS POSITIONING

Real time GPS location and assisted by AGPS & LBS, the accuracy deviation is less than 5 meters.

PROTECT CAR BATTERY CIRCUIT

Compatible with car’s OBD II port, no need to cut any wires.

DETECT ACC STATUS

Whenever the car ignition turns on, you will receive a notification.

HISTORY PLAYBACK

Check the history location to know where the car went.

WIDE VOLTAGE RANGE

Wide operating voltage range 9V-36V DC.

COMPACT SIZE

Compact design, OBD II connectivity.

MULTIPLE ALERTS

Instant alert for overspeed, geo-fence, parking, power off, idle status, working hours.

SMS CONFIGURATION

Configure the device by SMS even you are staying thousands of miles away.

APPLICATIONS

SPECIFICATIONS

Items Parameters
GPS Chipset MTK2503
GPS Sensitivity Autonomus:-147 dBm

Hot start: -156 dBm

Reacquicition: -160 dBm

Tracking: -162 dBm

GPS Position Accuracy <10 meters (This data is for reference only, and the positioning accuracy is related to elements such as the terrain and time of the vehicle)
GSM Frequency Quad band: 850/900/1800/1900 MHZ
GSM Sensitivity Class Ⅱ RBER 2%(-107 dBm)
Dimension L45*W39**H22mm
Weight About 48g
Backup Battery Working Time 30 minutes
Operating Volatge 9V to 36V DC
Operating Temperature -25℃ ~ +75℃ (without battery)

-40℃ ~ +85℃ for storage (without battery)

Mini USB Port Mini USB port for upgrading and debugging
Transmit Protocol TCP

ACCESSORIES

Standard Accessories    The OBD II device itself

Optional Accessories    None

CERTIFICATES

CE, RoHS, FCC
